By the Figure Vault workshop team. Last updated June 2025. Prices come from marketplace listings I reviewed that month, so treat them as ballpark figures.Soft goods action figure upgrade parts are real-fabric capes, cloaks and garments that replace molded plastic ones. A basic handmade cape costs $20-40, and a full costume set can reach $150. At 1/72 scale, where a figure stands about 25 mm tall, the best cloth is fine silk habotai or thin cotton lawn under 0.1 mm thick, paired with 0.2 mm wire. Pick wire for dynamic poses. Pick weighted hems for a static shelf.
What Soft Goods Action Figure Upgrade Parts Actually Do
A molded plastic cape is a sculpture. It has one shape, and it always will. A fabric cape is a material, so it catches light, folds, and moves when you bend the wire hidden in its hem.
That difference matters most in photography. A dark cloak laid flat shows weave and stitching. The same cloak on a knight, with the hem lifted as if a wind just hit it, tells a story.
This guide covers the 1/72 scale I build for, with notes on larger scales for comparison. I made the measurements below at my bench with a digital caliper and a loupe. They are my own numbers, not lab data.
Fabric Thickness by Scale: One Consistent Reference
Thickness is the whole game. Fabric does not shrink when you cut a smaller pattern, so a cloth that drapes well on a 12-inch figure turns stiff and bulky on a 1-inch one. Scale fixes the weave, and the weave decides the fold.
The table below is the set of numbers I use. It is the only fabric guidance in this article, so there are no conflicting claims elsewhere.
| Scale | Figure height | Best fabric | Approx. thickness | Wire diameter |
|---|---|---|---|---|
| 1/6 | 300 mm (12 in) | Silk habotai 8 momme or cotton lawn | 0.10-0.20 mm | 0.5 mm |
| 1/12 | 150 mm (6 in) | Cotton voile or silk habotai 5 momme | 0.08-0.15 mm | 0.4 mm |
| 1/18 | 100 mm (4 in) | Silk habotai 5 momme | 0.06-0.10 mm | 0.3 mm |
| 1/72 | 25 mm (1 in) | Dark-dyed silk habotai 5 momme | 0.05-0.08 mm | 0.2 mm |
| Any scale (avoid) | n/a | Quilting cotton, felt | 0.25 to over 1.0 mm | n/a |
Quilting cotton measured 0.25-0.30 mm on my caliper, and felt came in above 1 mm. Both look like a sleeping bag on a 1/72 knight. Cotton is fine at 1/6. The "too thick" verdict depends on scale, not on the fiber.
For wire, 32 AWG (0.2 mm) annealed copper is my 1/72 choice. The American wire gauge chart converts sizes if your supplier lists gauge instead of millimeters. Silk habotai is sold by several dye suppliers, including Dharma Trading Co., in weights from 5 to 14 momme.
Wire Frames vs. Weighted Hems

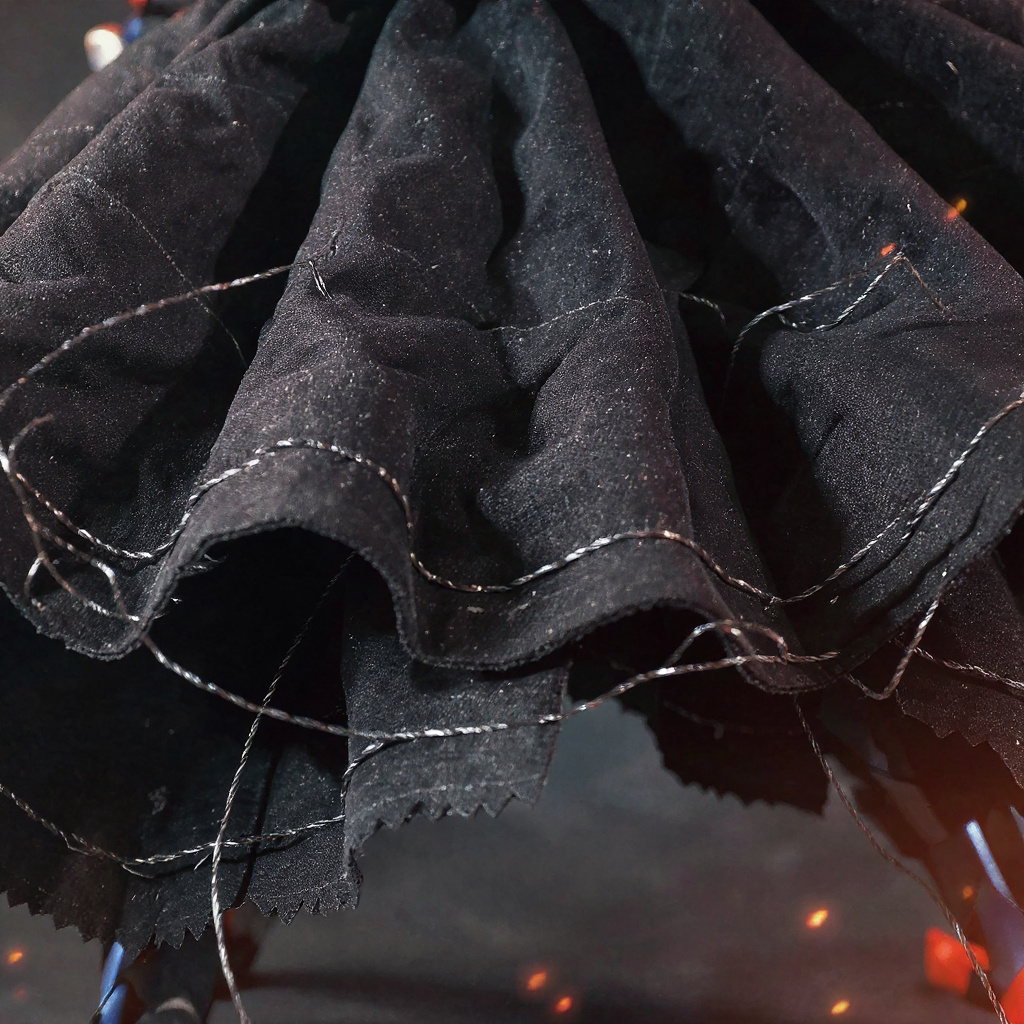

Two methods create believable flow. One hides a wire in the hem. The other sews in tiny weights and lets gravity pull the cloth down.
| Factor | Internal wire frame | Weighted hem |
|---|---|---|
| Pose range | Unlimited; holds wind-blown shapes | Hangs straight only |
| Look in a neutral stance | Good if the wire is hidden well | Excellent |
| Durability | About 8-10 re-bends before 32 AWG copper stiffens, in my tests | No fatigue |
| Difficulty at 1/72 | High; the channel is about 1.5 mm wide | Moderate |
| Best use | Photography, reposing | Static shelf display |
The wire downside is real. Copper work-hardens, and a kink at the same spot ten times will snap it. I bend in broad curves with a radius of at least 2 mm and move the bend point each time.
How I Build a 1/72 Wire-Edged Cape: 7 Steps
1. Make a paper pattern. Cut a trapezoid roughly 14 mm wide at the neck and 30 mm wide at the hem, about 20 mm long. Hold it against the figure and trim until it clears the arms. 2. Cut the cloth on the bias. Silk cut at 45 degrees to the grain drapes softer and frays less. Leave a 2 mm margin on the sides and hem. 3. Cut the wire. Take 32 AWG copper about 70 mm long. Straighten it between your fingers and flatten the ends with pliers so they cannot poke through. 4. Fold the edge over the wire. Turn the margin about 1.5 mm and secure it with a hair-thin line of fabric glue. Thread works too, but 100-weight thread is the finest I trust at this size. 5. Finish the neck edge. Gather it with two tiny stitches. Leave a 1 mm tab for the figure's neck or shoulder joint. 6. Fit and pose. Use tweezers and bend in gentle arcs. Let the cloth settle for a minute. 7. Weather it. See the next section. Do this last.
Patience, mostly. That is the real skill.
Weathering Dark Fabric
New black cloth looks like a costume. Battle-worn cloth looks like it has a past.
Tea staining is useless on dark fabric because the color never shows. I dry-brush grey-brown acrylic on the lower hem and folds instead. Mixing it 2:1 fabric medium to paint is my own ratio, not an industry standard. It stopped the paint from cracking after I flexed the wire a few dozen times.
For damage, I drag a needle tip across the hem to pull two or three threads. Stop there. A torn cape on a 25 mm figure reads as a torn cape from a meter away.
Sizing: Measure in Millimeters
Stated scale is a suggestion. A "1/72" knight may stand anywhere from 22 to 28 mm depending on the maker and the helmet. Measure these before you order or cut:
- Shoulder width. Usually 8-10 mm at 1/72. - Neck-to-ankle length. This sets the cape length. - Arm clearance. Check it with the arms in the pose you plan to use. - Base height. A raised foot changes how a hem touches the ground.
Collectors on r/ActionFigures often post size mismatches, and nearly all trace back to trusting the box instead of a ruler.
Price Tiers for Soft Goods Action Figure Upgrade Parts
I use one price set throughout this article. It reflects the listings I reviewed in mid-2025.
| Tier | Typical price | What you get |
|---|---|---|
| Basic cape or cloak | $20-40 | Simple shape, finished hem, optional wire |
| Structured robe | $35-60 | Multiple panels, shaped shoulders |
| Character-specific replica | $50-80 | Matched colors, weathering |
| Full costume set | $80-150 | Several coordinated pieces |
| Commission | $100+ | Built from your reference photos |
Start with a basic cape. Handmade quality varies from seller to seller, and a $30 test saves you from a $120 mistake.
The Honest Part
Honestly, if you never repose your figures, skip fabric at 1/72. A well-cast resin or plastic cape holds fold detail that no 0.06 mm silk can match at this size, and it will never fray. Fabric earns its place only when you want motion, or when you want the cloth texture visible in a close photo.
Also, fabric at this scale looks different from full-size cloth. Folds are larger relative to the figure than they would be in real life. Accept that, or stay with plastic.
A Real Example: The 1/72 Lancelot Ash Knight Cape

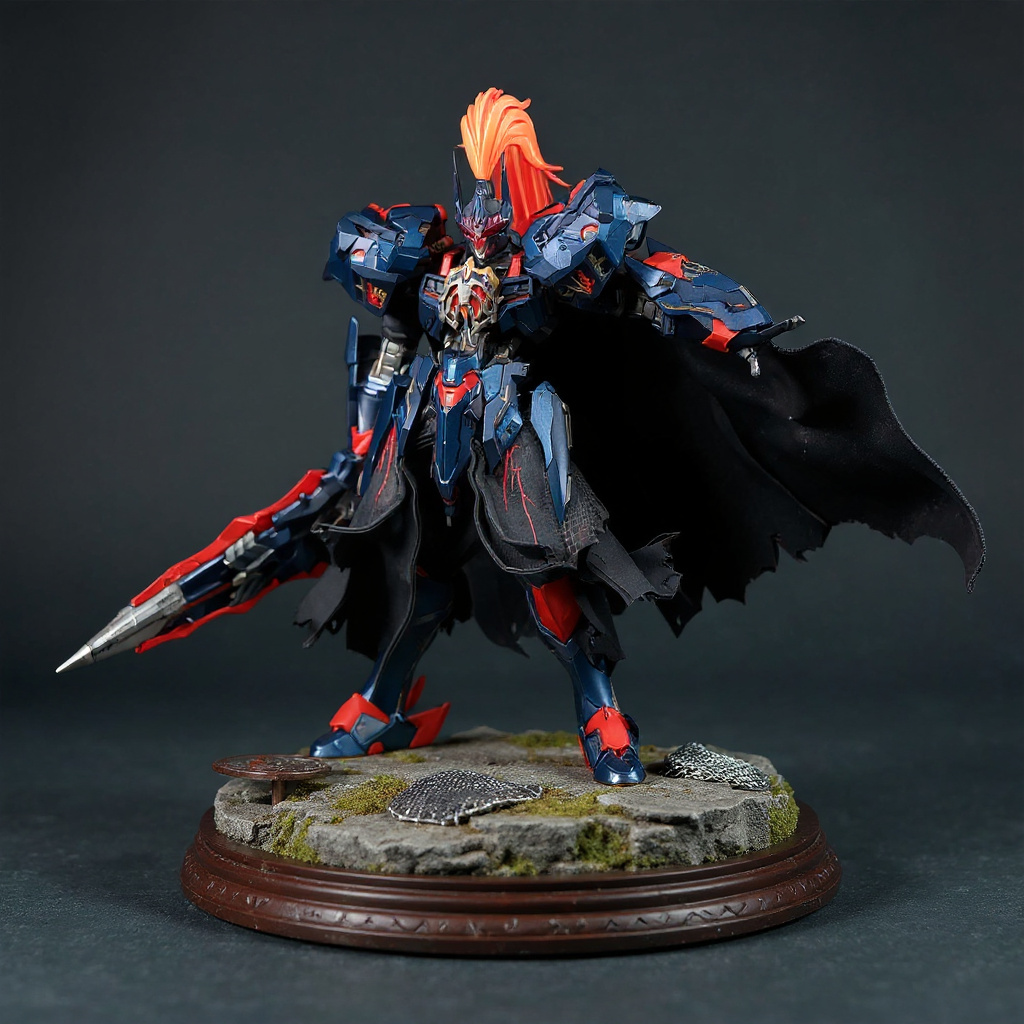

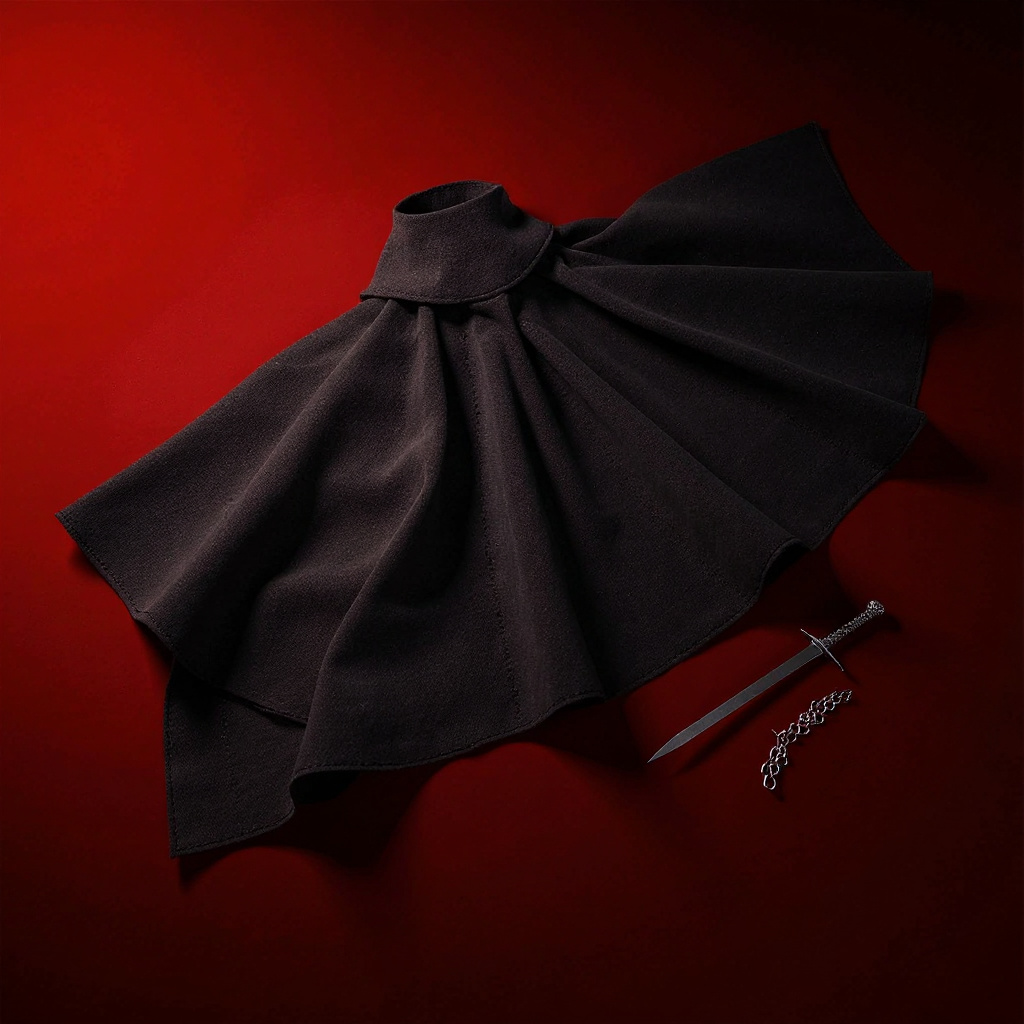

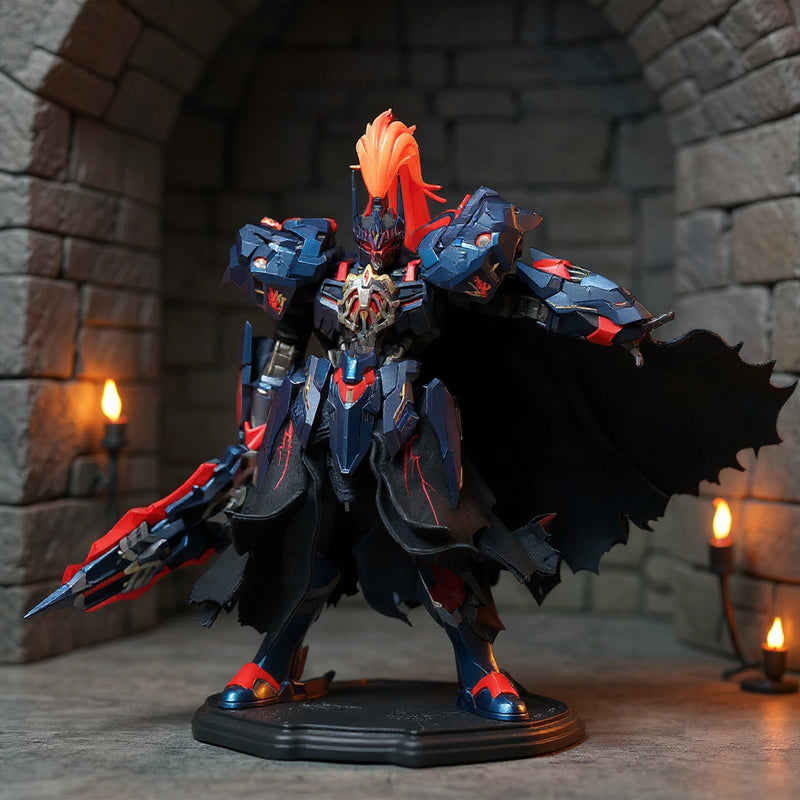

The 1/72 Lancelot Ash Knight Replacement Cape is a dark, flowing fabric cape sized for a 1/72 knight-armor figure. It has an internal wire frame so you can bend it into a billowing pose, and stitched edges that hold up in macro photos. The listing shows it both worn by a knight and laid flat, so you can judge the fabric texture and stitching before you buy.
When I evaluate any piece like this, I check four things: whether the hem is bulky, whether the wire shows through, whether the neck tab fits the shoulder, and whether the cloth springs back flat after posing. Ask any seller the same questions.
Buying From a Maker: A Short Checklist
- Look at recent reviews. Old five-star ratings can hide slipping quality. - Request photos of the actual item. Stock photos repeat across listings. - Confirm the scale and the cape length in millimeters. - Ask about lead time. Makers I have dealt with quote one to three weeks. Always confirm. - Read the return policy. Custom pieces are often final sale.
Threads on r/onesixthscale often name makers to try and makers to avoid. For background on collectible figures in general, see the action figure overview and the scale model entry for how scale ratios work.
FAQ
What are soft goods on action figures? Soft goods are fabric accessories such as capes, cloaks and clothing that replace or add to the plastic parts a figure ships with. Many include a thin internal wire so the cloth holds a pose. How much do soft goods action figure upgrade parts cost? Basic handmade capes run $20-40, structured robes $35-60, character replicas $50-80, full sets $80-150, and commissions start near $100. These are mid-2025 listing ranges, not fixed prices. What fabric works best for a 1/72 scale cape? Fine silk habotai at 5 momme, about 0.05-0.08 mm thick, works best. Quilting cotton (0.25-0.30 mm) and felt (over 1 mm) are too thick at this size. What wire do you use inside a miniature cape? For 1/72, I use 32 AWG (0.2 mm) annealed copper. Bend it in curves of at least 2 mm radius, since sharp kinks work-harden the metal and snap it after roughly 8-10 re-bends. Is a wire frame or a weighted hem better? Wire suits photography and reposing, because it holds shapes the cloth would never take alone. Weighted hems suit figures that stay in one stance, since gravity gives natural drape with no wear point. How do you weather a black fabric cape? Dry-brush grey-brown acrylic onto the hem and folds. Mix it 2:1 fabric medium to paint to limit cracking, and pull two or three threads with a needle for light damage. Tea staining will not show on dark cloth. Can I scale down a 1/6 pattern for a 1/72 figure? You can scale the shape, but not the fabric. A pattern shrinks, while cloth thickness and thread size stay fixed, so you must change to thinner fabric and finer thread.Choosing Soft Goods Action Figure Upgrade Parts That Fit Your Display
If you want motion, pick wire. If you want calm, pick weights or plastic. Measure your figure in millimeters, match fabric thickness to scale, and test with a basic cape before spending on a full set.
Ready to try one? Browse the 1/72 Lancelot Ash Knight Replacement Cape or see more soft goods action figure upgrade parts for other figures.
